Butcher Job Saved: The PS5 HDMI Repair Gone Horribly Wrong (And How We Recovered It)

If your PlayStation 5 suffers a bent pin, a loose port, or a total loss of video output, the most critical decision you will make isn’t when to get it fixed—it’s who you trust to perform the repair.

A local gamer recently brought us a PlayStation 5 experiencing severe screen flickering and signal dropping. The console had just been picked up from another local repair shop, where the owner was told they had replaced the HDMI port. When the flickering persisted, the previous shop washed their hands of the issue, claiming the HDMI Retimer IC (Panasonic MN864739) was "going bad" and that the motherboard was beyond help.

Sensing something wasn't right, the owner brought the PS5 to The Solder Surgeon laboratory in Georgetown for a proper diagnostic under the microscope. What we found inside was a complete horror story—and a stark reminder of why component-level micro-soldering should never be left to amateur shops.

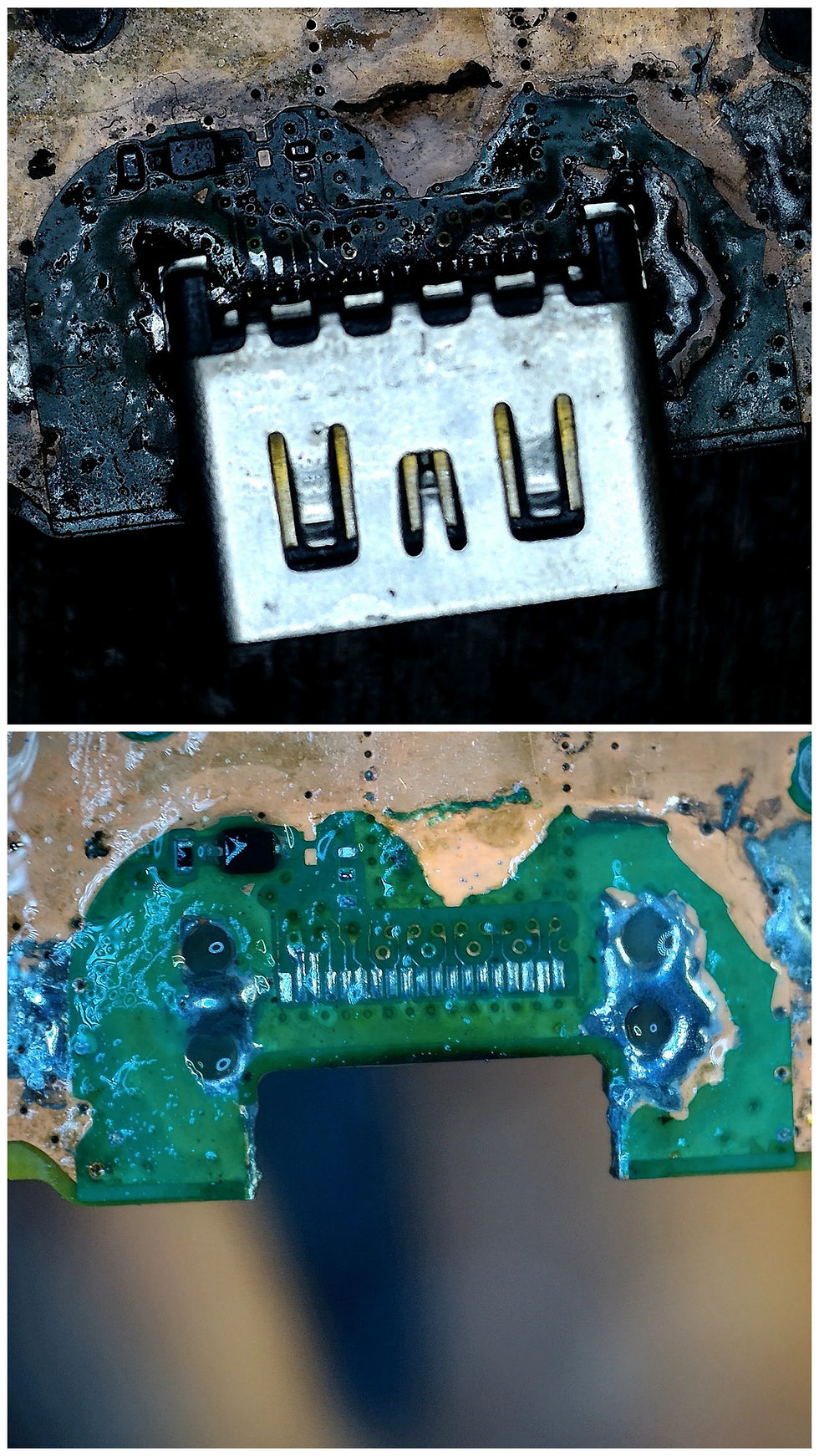

Under the Microscope: The aftermath of a botched HDMI port replacement by another shop. Notice the torn micro-traces, scorched board layers, and mounting anchor holes that were literally drilled out with a power tool. Before condemning an HDMI retimer chip, always inspect the physical pads under high optical magnification.

The Teardown: Uncovering a Botched Repair Nightmare

When we opened the PS5 and extracted the main logic board, the damage caused by the previous shop was immediately obvious under high magnification:

• Pads Ruined & Traces Torn: The high-frequency HDMI signal pads on the PCB were completely torn off due to improper hot-air thermal management during the initial port removal.

• Drilled Out Through-Holes: In a desperate attempt to seat a new port without proper desoldering tools, the previous technician literally drilled out the structural anchor leg holes on the motherboard, destroying internal grounding layers and copper plating.

• Thermal Stress & Flux Residue: The surrounding circuit board was heavily scorched, showing signs of excessive heat without adequate board pre-heating, which can warp thin multilayer PCBs.

• Intermittent Contact: The "flickering screen" wasn't a failing Retimer chip at all; the replacement HDMI port was barely making physical contact with the remaining trace fragments, causing constant impedance mismatches and video noise.

The Verdict: The previous shop didn't just fail the repair—they physically mutilated the motherboard, blamed a complex integrated circuit to cover their tracks, and handed back a dangerously compromised console.

The Recovery: Rebuilding Lost Traces & Structural Anchors

Restoring a ruined PS5 motherboard requires far more than basic soldering; it demands surgical precision, specialized micro-jumpers, and custom mechanical reinforcement. Much like our complex trace restoration work on pool and spa circuit boards or diagnostic recoveries featured in our robotic pool cleaner circuit board repair log, saving a mutilated game console requires a systematic, multi-step restoration:

1. Board Cleanup & Decontamination: We removed the botched port, scrubbed away burnt flux residue, and inspected the surrounding surface-mount filters for heat damage.

2. Rebuilding Lost Signal Traces: Using 0.02mm enameled copper jumper wire under high optical magnification, we painstakingly reconstructed every torn trace connecting the HDMI port pads back to the motherboard's filter chokes and ESD suppression diodes. Each trace was locked down with UV-curable solder mask and cured to prevent future movement or bridging.

3. Re-engineering the Structural Mounting Holes: Because the anchor holes had been physically enlarged by a drill bit, a standard HDMI port could no longer anchor securely. Without solid mechanical grounding, plugging in an HDMI cable would rip our micro-jumper work right off the board. We reinforced the mounting points using conductive silver epoxy and custom structural anchors, binding the new port directly to the main ground planes for maximum durability.

4. Precision Micro-Soldering & Validation: With the pads rebuilt and the anchor points reinforced, a brand-new, original-spec PS5 HDMI port was aligned and soldered. We verified every single pin under the microscope with a diode-mode multimeter test to ensure zero short circuits across high-speed differential pairs.

5.


The Result: Flawless 4K 120Hz Video Output

After reassembling the console with fresh liquid metal thermal compound on the APU, we booted the PS5 into Safe Mode and performed full stress testing at 4K resolution at 120Hz. The screen flicker was completely gone, HDR signal stability was solid, and the physical port felt as rigid as the day it left the Sony factory.

The customer walked away with a fully saved PlayStation 5, avoiding a $600+ replacement bill for a new console or a costly motherboard swap.

Buyer Beware: Why "Cheap" Repairs Cost More in the Long Run

The PlayStation 5 motherboard uses a dense, multi-layer circuit board that dissipates heat rapidly. Removing and replacing the factory lead-free solder requires industrial pre-heaters, precise hot-air temperature curves, high-grade flux, and expert micro-soldering skills.

When a shop lacks these tools, they resort to forcing components off the board, tearing copper pads, using excessive heat, or using power tools to force parts to fit. Whether you are dealing with a botched console repair, a damaged power rail, or an unfixable controller, choosing the right technician first makes all the difference.

Before you drop off your gaming console, laptop, or specialized electronics at any repair shop, ask them these three questions:

1. Do you use a professional stereo microscope and micro-soldering station?

2. How do you handle torn motherboard pads if a trace breaks during port removal?

3. Do you perform diode-mode testing on HDMI signal lines before returning the unit?

If a shop can't give you a clear answer, keep walking.
